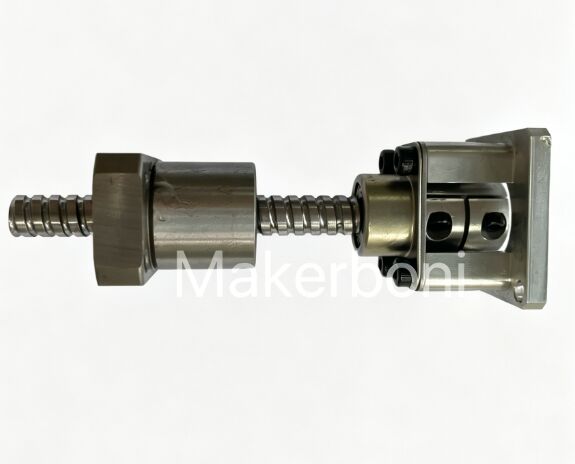

High-Precision Ball Screw Assembly for Lectra – Ideal for Single-Cut Applications

Key Features of Ball Screw Assembly for Lectra

• High Precision & Accuracy: Manufactured to strict industrial standards (C5/C7 accuracy grades), delivering positioning repeatability up to ±0.005 mm and minimal axial play for error-free single-cut operations.
• Durable Construction: Crafted from high-grade chrome-molybdenum steel (SCM415H) with HRC 58–62 surface hardness on threaded areas, ensuring long-term wear resistance and structural stability.
• Low Friction & High Efficiency: Ball-bearing design between screw shaft and nut reduces friction coefficient, achieving over 90% transmission efficiency and enabling smooth, energy-saving motion.
• Compact & Compatible: Optimized dimensions for direct replacement in Lectra single-cut machines; modular design allows easy installation, maintenance, and integration with existing systems.
• Reliable Performance: Precisely preloaded to eliminate backlash, with dustproof sealing to resist contaminants—ideal for harsh workshop environments.

Core Advantages for Lectra Single-Cut Systems

1. Enhanced Cutting Precision: Eliminates motion errors in single-cut processes, ensuring clean, accurate cuts for fabrics, leathers, and industrial materials—critical for Lectra’s high-speed cutting applications.
2. Extended Service Life: Heat-treated components and anti-rust coating minimize wear, reducing downtime and replacement costs for Lectra equipment.
3. Smooth & Quiet Operation: Reduced vibration and noise during high-speed linear motion, improving workplace comfort and machine stability.
4. Cost-Effective Maintenance: Standardized design enables quick part replacement, lowering maintenance labor and downtime for Lectra users.
5. Seamless System Integration: Perfectly matched to Lectra’s CNC control systems, supporting high-speed acceleration (up to 10,000 mm/s²) and precise motion control.

Technical Parameters of Ball Screw Assembly for Lectra

Typical Applications
